// SBC-966·SBCVerifiedintermediate·Last verified 2026-04-18

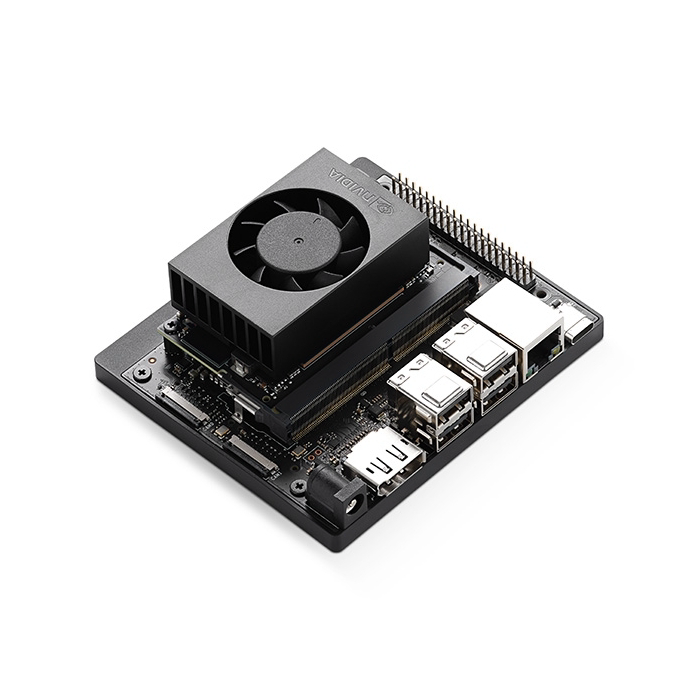

NVIDIA Jetson Orin Nano Developer Kit
NVIDIA · ARM Cortex-A78AE + 1024-core Ampere GPU
Production-ready edge AI developer kit delivering up to 40 TOPS of accelerated inference in a 100×79 mm module. Full CUDA, TensorRT, and ROS 2 support through the JetPack BSP, with a unified 8 GB LPDDR5 memory pool shared between the six-core Cortex-A78AE cluster and the 1024-core Ampere GPU.
// data_qualitycomplete|// confidenceMEDIUM
// 01
Specs
// processing — primaryHIGH
Jetson Orin Nano (8GB)
// cpu_cores
| Architecture | ARM Cortex-A78AE |
| Count | 6 cores |
| Bit width | 64-bit |
| Clock | 1500 MHz |
| Features | FPU · NEON · TrustZone · Virtualization |
// gpu
| Architecture | Ampere |
| CUDA cores | 1024 |
| Tensor cores | 32 |
| Clock | 625 MHz |
| VRAM | shared unified with CPU |
| Memory bus | 128-bit |
| TDP | 15 W |
// npu
| AI performance | 40 TOPS |
| Precisions | INT8 · FP16 |
| Efficiency | 2.67 TOPS/W |
// memory (internal)
| RAM | 8 GB 8,388,608 KB · unified |
| Flash | — |
| EEPROM | — |
// security
| Secure boot | Yes |
| TrustZone | Yes |
| Hardware crypto | Yes |
| Crypto algorithms | AES-256 · SHA-256 · RSA · ECC |
| Secure storage | Yes eFuse / OTP |
| Tamper detection | No |
| Secure element | — |
// powerMED
// input
| Voltage range | 9 V – 19 V |
| Recommended | 19 V @ 45 W |
| Operating voltage | 5 V core logic |
// provides
| 5 V | max 2000 mA |
| 3.3 V | max 500 mA |
| 1.8 V | max 200 mA |
// battery
| Connector | — |
| Chemistry | |
| Charging circuit | No |
| Solar input | No |
// consumption
| Active | 4500 mA Full GPU + CPU load |
| Idle | 1500 mA Desktop idle, display connected |
// thermal
| TDP | 15 W |
| Operating temp | 0 °C to 50 °C |
| Storage temp | -25 °C to 85 °C |
| Throttle temp | 97 °C |
| Heatsink | Included active (fan) |
| Notes | Fan included with dev kit |
// physical
Form factor
Jetson standard
Dimensions
100 × 79 × 30 mm incl. heatsink
Weight
140 g
Breadboard friendly
No
Mounting holes
4 × 2.5mm Jetson standard
Enclosure available
Yes
// boot
| Boot media | microSD · NVMe SSD · USB · Network (PXE) |
| Default boot | microSD |
| Bootloader | U-Boot · UEFI |
| Boot time | — |
// onboard_components
// memory
eMMC
// networking
Gigabit Ethernet PHY
// inputs
| Input | Qty | Function |
|---|---|---|
| Power button | ×1 | power_on_off |
| Reset button | ×1 | reset |
| Recovery button | ×1 | recovery_mode |
// outputs
| Output | Qty | Detail |
|---|---|---|
| Power LED | ×1 | power_indicator · not programmable |
// standard_interfacesHIGH
| Connector | Qty | Description |
|---|---|---|
| USB-C (J6) | ×1 | USB 3.2 Gen 2 (10 Gbps) · PD input (5V/3A → 20V/2.25A) |
| RJ-45 (J10) | ×1 | Gigabit Ethernet (1 Gbps) · Wake-on-LAN · PTP |
| M.2 Key M (J3) | ×1 | NVMe (PCIe Gen3 x4) |
| M.2 Key E (J5) | ×1 | PCIe (PCIe Gen3 x1) · For WiFi/BT module |
| HDMI Type-A (J9) | ×1 | HDMI 2.1 (48 Gbps) · 4K@60Hz · HDR |
| DisplayPort (J8) | ×1 | DisplayPort 1.4a (32.4 Gbps) |
| MIPI CSI-2 (J7) | ×2 | MIPI CSI-2 · 4 lanes · 22-pin camera connector |
| DC Barrel Jack (J1) | ×1 | 19 V / 2.37 A · 45 W |
| Pin Header (J14) | ×1 | UART · Debug UART console |
| microSD (J4) | ×1 | SDIO (UHS-I) · Boot media |
// pin_headers
40-Pin Expansion HeaderJ12
12
gpio
2
spi
2
i2c
2
uart
2
pwm
1
i2s
// wirelessHIGH
No onboard wireless
// data_completeness
// from raw_spec.meta.data_completeness + raw_spec.meta.confidence.*
data_completenesscomplete
// meta.confidence · avg 2.6 / 3 · 5 sections rated
| wireless | HIGH |
| interfaces | HIGH |
| processing | HIGH |
| power | MED |
| software | MED |
// 02
Pinout
// pinout
No pinout yetContribute →
// 03
Software
// from raw_spec.software.* · support_level enum: board | controller | community | experimental | not_supported
// languages
| Name | Support Level | Detail |
|---|---|---|
| Python | board | v3.8+ · Full JetPack SDK Python bindings |
| C++ | board | C++17 |
| C | board | — |
| CUDA | board | v11.4 |
| Rust | controller | aarch64 target support, no board BSP |
// frameworks
| Name | Support Level | Detail |
|---|---|---|
| JetPack SDK ↗ | board | v6.0 |
| ROS 2 | board | Humble |
| DeepStream | board | v6.4 |
// os
| Name | Support Level | Detail |
|---|---|---|
| Ubuntu | board | v20.04 · JetPack 6 / L4T · Official NVIDIA Linux4Tegra |
// ai_ml_tools
| Name | Support Level | Detail |
|---|---|---|
| TensorRT | board | v8.6 |
| PyTorch | board | — |
| TensorFlow | board | — |
| ONNX Runtime | board | — |
// ides
VS CodeJupyter NotebookNVIDIA Nsight
// debugger_support
| Name | Support Level | Detail |
|---|---|---|
| GDB | — | — |
| NVIDIA Nsight Systems | — | — |
// 04
Learning
// core_resources
// from raw_spec.resources.core[] · generic to frameworks / languages used
// resources_by_framework
// from raw_spec.resources.{board,controller}[] grouped by framework
// resources_by_language
// from raw_spec.resources.{board,controller}[] grouped by language
// libraries
// from raw_spec.libraries[]
// 05
Certifications
// certifications
// from raw_spec.certifications[]
FCCUS
FCC
id: 2AZCN-P3767
CEEU
CE
id: not assigned
RoHS
RoHS
id: not assigned
